XS RELAY

Zooz Z-Wave Long Range XS Relay ZEN57
Extra Small
Designed to go where others can’t, thanks to its ultra compact design.
Perfect For Lights
This relay supports 100-240VAC 50/60 Hz installations.
Keep Your Wall Switch
Hide the XS Relay behind a simple "dumb" switch in the style and color you like.
Previous slide
Next slide
This product is covered under an extended 5-year warranty

5 Year Warranty

This device is covered under an extended 5-year warranty if registered within 30 days of purchase. We'll service and replace it if anything breaks.

Zooz Z-Wave Long Range Device

Z-Wave Long Range

Get incredible wireless coverage up to 1300 feet with reliable direct-to-hub communication. It sets up instantly with SmartStart pairing.

Zooz Tech Support offers friendly and personal assistance 7 days a week.

Trusted Support

Our US-based tech support team provides clear wiring diagrams and tailored instructions to help with your next Z-Wave project.

This is an S2 security device

S2 Security

This relay uses the highest level of encryption and 800 series Z-Wave chip for safe wireless connection. Build a private network off cloud with confidence.

Smart Applications

Add Z-Wave to 120 V (240 V in Europe) lighting installation for convenience and energy efficiency, while keeping your set-up private and secure.

Previous
Next

Lights up to 5 Amps

Use this relay for on/off wireless and wall switch control of lighting below 5 Amps. This translates to around 500 Watts incandescent or 150 Watts for LED bulbs at 120V. LED bulbs are an inductive load that draws much more power at start-up so the rating is always different for LED’s vs traditional incandescent bulbs. This relay is not intended for use with large appliances, fans, motors, switched receptacles, and any loads over 5 Amps.

Behind the switch

Thanks to its compact design, the relay fits in the most crowded box and brings Z-Wave to your existing wall switch. You can keep the style, color, and feel of your favorite wall control while adding the ability to fully automate your lights.

At the light fixture

If your switch box doesn’t have a neutral wire, you can install the XS relay at the light (where you’ll always find a neutral connection). It’s a great alternative for smart lighting control when you want to avoid unreliable cloud-dependent smart bulbs.

Hardware Features

The XS Relay packs powerful hardware into a tiny frame. It comes with terminals for secure wiring and 800 series Z-Wave chip for faster, safer connection.  And did we mention how small it was?

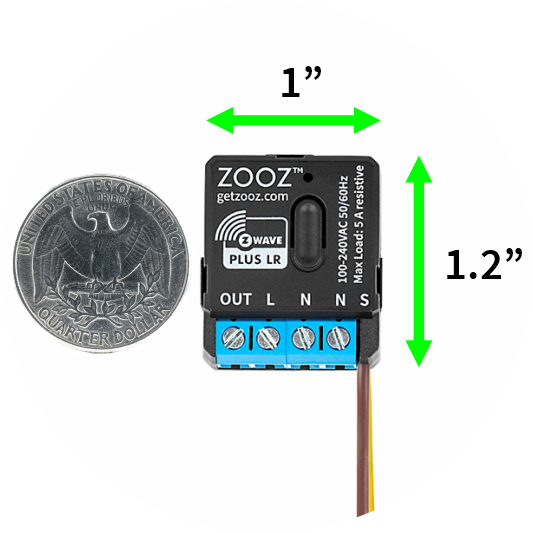

Zooz ZWLR XS Relay ZEN57 800LR Size Comparison

SIZE

It may be the smallest on/off Z-Wave relay out there! Designed for flexibility, the XS Relay fits installations where standard relays won’t, like tight boxes or behind stacked switches.

Z-Wave 800 series chip with Z-Wave Long Range

 Z-WAVE CHIP

With Z-Wave 800 series chip, the XS Relay ensures rock-solid reliability and longer reach, even in challenging environments. The advanced chip also boosts efficiency, so your network runs smoother with less power.

Zooz ZWLR XS Relay ZEN57 Z-Wave Button

BUTTON

The Z-Wave button on the device can be used to turn the connected load on and off. You will also pair the device with your Z-Wave hub using the button, or factory reset it if needed.

WIRING

The XS Relay offers wire terminals to keep the installation clean and pigtail wires to add an external switch through a dry contact connection. Do NOT connect any Voltage to the switch wires at any time. MAX 14 AWG wires. Always follow the appropriate diagram for your installation.

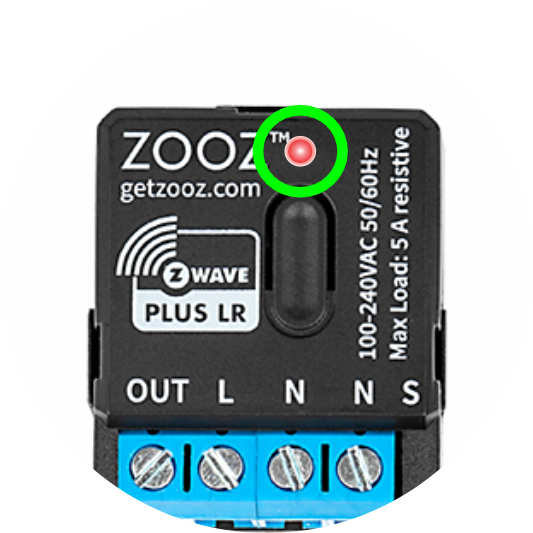

LED INDICATOR

To easily troubleshoot the XS relay, we've added a multi-color LED indicator that will flash or light up in green or red to signal communication, successful or failed operation, and factory reset.

QUESTIONS?

Get in touch!

Software Highlights

The XS Relay gives you precise control over your Z-Wave setup with smart settings and flexible inputs. Easy to pair, secure, and reliable, it adapts perfectly to any lighting project.

Z-WAVE LONG RANGE

Up to 1,300 ft direct hub-to-device range with ZWLR for ultra-reliable wireless coverage.

SMART BULB MODE

Bypass mechanical/Z-Wave switching for always-on smart bulbs or custom automation.

Z-WAVE PLUS

Mesh-compatible, doubles as a repeater to extend your network.

CUSTOM INPUTS

Supports wall switches or analog sensors (reed, leak, motion). Configure it in advanced settings.

SMARTSTART

Pair in seconds via QR code; unique security key ensures encrypted communication.

AUTO TIMERS

Reliable on/off schedules, even if your hub is offline.

Real Reviews

You said it

"Zen57 Long range Inclusion through zwave-js-ui into HA was quick and easy. Over a few weeks it’s been flawless. I’m using it behind a bathroom light switch bc my Luddite kids want a toggle switch with no delay. With scene control off there is truly no delay."
BartwickThe Smartest House product review
"I like how small it is. At 1.2” x 1” x 0.6” I think it may be the smallest z-wave relay you can buy. Its even smaller than the Shelly Wave 1 mini."
C. WilliamsThe Smartest House product review
"I am using this for a remote alarm for our sewer lift station. Associated with the Hubitat easily. [...] Now I have a remote alarm, should the pump fail and we get a high level."
Charles99The Smartest House product review

Resources

If you don’t see your Z-Wave hub on this list, click hear to learn more about compatibility.

INSTALLATION QUESTIONS

Can the ZEN57 be installed outdoors?

  • No. The ZEN57 is rated for indoor use only.

What is the operating temperature of the ZEN57?

  • 32-104° F (0-40° C)

What are the dimensions of the ZEN57? How big is the device?

  • 1.2” x 1” x 0.6”

Can I fit multiple ZEN57 in the same switch box?

  • If your switch box is deep enough and the box is not overcrowded with wires then you should be able to fit more than one ZEN57 unit in the same switch box.

How is the ZEN57 powered?

  • The ZEN57 is powered via 100-240VAC.

What is the load capacity for the ZEN57?

  • 120V: 5A resistive, 500W incandescent, 150W LED bulbs

  • 240V: 5A resistive, 1000W incandescent, 300W LED bulbs

How do I install the ZEN57?

  • Your ZEN57 relay should come with a manual containing the most common wiring diagrams.

How Can I Identify the Wiring For My ZEN57?

  • Your ZEN57 comes with lifetime tech support and we’re happy to help identify the wiring in your set-up and provide custom wiring instructions, free of charge. However, for safety and liability reasons, we require clear images of a fully working installation with standard switches installed from each switch box involved in your set-up. Please review the requirements in this article before submitting your images and wiring diagram request to Zooz support.

What kind of wall switch can I use with the ZEN57?

  • The ZEN57 can be directly connected to a simple on/off mechanical switch (without any LED indicators or illuminated elements) or a momentary switch like the ZAC99 momentary switch.
  • How about a smart switch? While you can never connect an electronic or smart switch to the ZEN57 electrically through a wired connection, there is an alternative. If your local regulations allow it, you can skip the direct electrical switch connection and control the ZEN57 remotely using any Zooz smart switch or remote instead. You would program them with multi-tap scene control triggers or direct association if you hub supports these advanced features.

Can I use the ZEN57 with a dimmer?

  • No, the ZEN57 provides on/off control only and needs to be connected to a regular on/off switch (no LED indicators or illuminated paddles).

Can I install the ZEN57 without a wall switch?

  • The ZEN57 can be wired without a physical switch. You would follow the diagram in the manual with the switch pigtails capped.
  • Please ensure you have verified if it’s acceptable to have an electrical fixture without a wall control for emergency shut-off with your local regulations. In most places this kind of set-up is not up to code.

Can I use the ZEN57 in a 3-way or 4-way set-up?

What AWG is supported on the ZEN57?

  • No larger than 14 AWG may be used.

Can I use smart bulbs with the ZEN57?

  • Yes. The ZEN57 has a special Smart Bulb Mode setting, which disables the manual and/or Z-Wave control for the ZEN57. Always turn the ZEN57 on first before changing this setting. This is important because otherwise you would be cutting power to the smart bulbs and not be able to control them wirelessly / remotely.

What is the warranty coverage for the ZEN57?

Where can I find the device manual for the ZEN57?

PRODUCT FUNCTIONALITY QUESTIONS

What security level does the ZEN57 pair to my controller or hub with?

  • The highest level of security the ZEN57 supports is S2 Authenticated.

Will the ZEN57 act as a signal repeater for other Z-Wave devices in my network?

  • Yes, it will act as a repeater in a traditional mesh because the ZEN57 is constantly powered. Your Z-Wave hub decides which devices to use to reach other Z-Wave devices. Any non-battery powered Z-Wave device will act as a signal repeater; it would be up to your hub whether or not it will be used in a communication route.
  • If your hub supports Z-Wave Long Range, you can add it to your network as a Long Range device which means it will communicate with the hub directly at a much greater range. But it also means it will not participate in your Z-Wave mesh and will not act as a signal repeater or range extender since Z-Wave Long Range is a star topology type network.

What kind of load is the ZEN57 rated for? What is its maximum rating?

  • 120V: 5A resistive, 500W incandescent, 150W LED bulbs

  • 240V: 5A resistive, 1000W incandescent, 300W LED bulbs

What is each terminal on the ZEN57 for?

  • OUT : This is the connection for the load to close the circuit and trigger the connected load.

  • L: Line/Hot120VAC

  • N: Neutral from the Load

  • N: Neutral from the Power Line

  • S Yellow: Dry contact switch

  • S Brown:  Dry contact switch

Z-WAVE QUESTIONS

Do I need a Z-Wave hub to buy the ZEN57?

  • No. With the ZEN57 installed, you can still control the connected load with the wall switch so you can install it without having a Z-Wave hub; however, to control the device remotely and access the advanced features, you would need a Z-Wave hub. The ZEN57 communicates via Z-Wave and would require a hub to allow you to control it remotely.
  • To control any of our Z-Wave devices remotely through your smart phone, you’ll need a compatible Z-Wave hub. These devices require a central controller that communicates with them and sends commands. Once you have a controller, you would download that controller’s dedicated app on your phone and control your connected devices through that app.

Will I still be able to control the ZEN57 or connected load if my Z-Wave hub is down or offline?

  • The ZEN57 simply adds Z-Wave control to your existing light switch, so you will have manual control of the connected load from the wall switch. You won’t be able to control the load via the ZEN57 through your Z-Wave hub.

Is the ZEN57 compatible with my hub?

  • You can find a list of compatible hubs for a given device under the Works With section on the product’s page. Here is the list of hubs compatible with the ZEN57.

Will the ZEN57 work with my alarm panel?

  • Alarm panels like Alarm.com will typically only support single switches, door locks, select thermostats, and any authorized items on their list. We would recommend reaching out to your alarm panel company to verify compatibility and to get the latest on any device integrations they may be working on.
  • The ZEN57 should pair as a basic on/off device, but you would not have access to the advanced functionality. It would be up to your alarm panel to integrate the ZEN57, as it follows Z-Wave protocol and has been Z-Wave certified. There is nothing we can change on our end to have the relay be recognized correctly; Alarm.com would have to support the integration. Read more about alarm panel compatibility here.

Can I connect the ZEN57 directly to my Amazon Alexa, Google Home, or other smart speaker?

  • No. Smart speakers like Alexa or Google are not equipped with a Z-Wave chip and are not Z-Wave gateway controllers.
  • Smart speakers are integrated with certain Z-Wave hubs, like the Z-Box Hub, SmartThings or Hubitat, which is how you can have voice control of your Z-Wave devices from your smart speakers.
  • Without a compatible Z-Wave hub, no Z-Wave products will function correctly with Alexa or Google alone.

Where do I find all of my ZEN57’s advanced settings?

How do I add the ZEN57 to my Z-Wave hub?

How can I tell what firmware my ZEN57 is running on?

  • The firmware that your ZEN57 is shipped with should be printed on the back of the device where the model specifications are. If your hub supports and properly integrates the device, you should also see the firmware listed in your Z-Wave interface.

How do I update the firmware of my ZEN57?

How long does the update take? How do I know when it’s finished?

  • Firmware updates should usually take anywhere from 5 to 15 minutes depending on connection quality and how much information needs to actually be updated on a given device.
    • If it is taking longer than that, please try to bring the hub / controller closer to the device that is being updated.

Where can I find the history of changes and firmware updates for the ZEN57?

What series Z-Wave chip does the ZEN57 use?

  • The ZEN57 uses an 800 series Z-Wave chip and is Z-Wave Long Range enabled.

Is the ZEN57 available in other Z-Wave frequencies?

  • The ZEN57 is currently available in 908.42 MHz (US, CA, MX) frequency.

HUB SPECIFIC INSTRUCTIONS

GENERAL INSTRUCTIONS

  • US English ZEN57 Product Manual
  • Model Number: ZEN57 800LR
  • Power: 100-240V, 50/60Hz
  • Maximum Loads: 5A resistive (120V: 500W incandescent, 150W LED bulbs / 240V: 1000W incandescent, 300W LED bulbs)
  • Z-Wave Range: Up to 300 feet line of sight or up to 1300 feet with Z-Wave Long Range enabled, your hub needs to supports this feature)
  • Dimensions: 1.2” x 1” x 0.6”
  • Operating Temperature: 32-104° F (0-40° C)
  • Installation: Indoor only
  • Acceptable Wire Gauge: Max 14 AWG
